high transmission low-e insulated glass

FOB Reference Price:Get Latest Price
$8.00 - $88.00 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
ShanYao
Model Number:
YH-IGU
Function:
Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
Shape:
Curve, Flat
Structure:
Hollow
Technique:
Clear Glass, Coated Glass, Tempered Glass
Type:
Insulating Glass
Color:
Neutral, Green, Blue, Silver Grey, Light Grey, Dark Grey, etc.
Series:
Float IGU, Coat IGU
Supply Ability
Supply Ability:
1000000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
Strong seaworthy plywood crates with full paper interleaved between glass panels
Port
Qingdao,China
Lead Time :
Shipped in 15 days after payment

high transmission low-e insulated glass







Product Overviews

 Insulated glass units (IGU’s) or double glazed units are a significantly more energy efficient glazing system than single glazing. IGU’s consist of two or more layers of glass separated by a void normally filled by air. The combination of airspace and glass panes act as an additional barrier, making the transfer of heat by convection, conduction and radiation more difficult. The glass panels are separated using aluminium or other types of spacers around the edges, hermetically sealed to the perimeter in controlled conditions. Common spacers range in width from 6mm up to 14mm. The spacer contains a desiccant (drying agent) which eliminates moisture vapour in the cavity. IGU’s are not to be confused with double glass windows or secondary sashes/windows, where the two panes have not been hermitically sealed. An IGU depending on the type of glazing used is generally glazed into an aluminium, timber or PVC window frame.





FEATURES:



1. Solar and thermal control;
2. Reduction of heat build up in summer;
3. Reduction of winter heat loss and condensation;
4. Lower air conditioning and heating energy costs;
5. Improves occupant comfort, particularly next to windows by reducing hot and cold spots;
6. Lower noise penetration;
7. Lower UV transmission;
8. Increased windload strength;
9. Increased security.











SPECIFICATIONS:



Maximum Size: 2440x6000mm



Minimum Size: 200x300mm



Spacer Width: 6mm (1/4''), 9mm (3/8''), 12mm (1/2''), 16mm (5/8'')







CERTIFICATIONS:







GB/T 11944-2012 Insulating glass unit



Packages



Strong seaworthy plywood crates with full paper or powders interleaved between glass panels

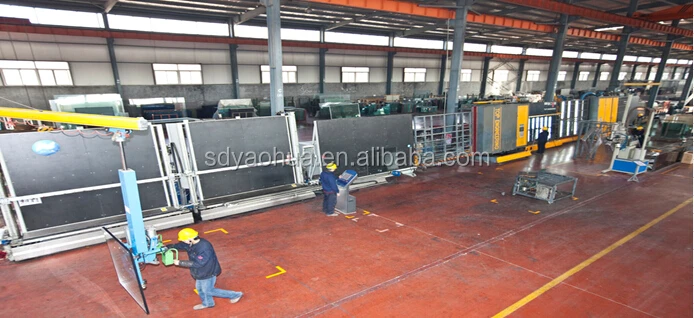

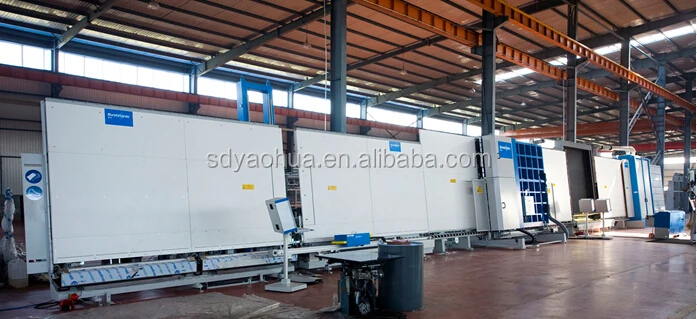

Our Workshops



  •  3 Laminated Glass Lines;
  •  4 Insulated Glass lines;
  •  5 Flat Tempered Glass Lines;
  •  1 Curved Tempered Glass Line;
  •  1 Heat Soaked Test Line;
  •  1 Silk Screen Printed Glass Line


Perfect Projects



Vietnam Ho Chi Minh City Bank

5mm Low-E +12A + 5mm Clear

Tempered Insulating Glass Unit





Our Advantages
  •  Yaohua's Technical Support
  • A stable team, rich with experience
  • First-class and one-stop production equipments matching
  • Guaranteed high quality float glass, supplied from glass source operations
  • Strict quality controls on raw materials
SPECIALIZING IN HIGH-GRADE ENERGY-SAVING GLASS
                                                            THROUGH WORLD ADVANCED TECHNOLOGY
Manufacturing Bases



Establised in 1985, Shandong Yaohua Glass Co.,Ltd is a building glass deep-processing manufacturer, who has specialized in building glass for 30 years. At present, there are 2 large modern standard manufacturing bases, about 350 employees. Its comprehensive power ranks fairly high in the industry with a total capital asset of RMB100 million and an annual sale of over RMB100 million. Shandong Yaohua Glass has been granted both " Shandong Province Famous Trademark " and " Shandong Province Famous Brand Products ".



Recently, We Shandong Yaohua Glass have successfully finalisted " China Processing Glass Enterprises TOP 30 "!!!!
