Energy saving 5 mm clear tempered glass 9A low-e insulated glass

FOB Reference Price:Get Latest Price
US $3-30 / Square Meters | 100 Square Meter/Square Meters low-e insulated glass building glass (Min. Order)
Color:
Clear
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SHANYAO
Model Number:
Shandong yaohua low-e glass
Function:
Acid Etched Glass, Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
Shape:
Curve, Flat
Structure:
Hollow, Solid
Technique:
Clear Glass, Coated Glass, Figured Glass, Frosted Glass, Laminated Glass, Stained Glass, Tempered Glass, Tinted Glass, Wired Glass
Type:
Float Glass
Name:
low-e insulated glass building glass
color:
clear, ultra clear, grey, green, blue and bronze etc
thickness:
3-15mm
max size:
2440*6000mm
min size:
200*300mm
edge:
fine polished edge
shape:
curve and flat
products type:
low-e insulated glass, tempered low-e glass, laminated low-e glass
function:
building, window, door etc
Supply Ability
Supply Ability:
18000 Square Meter/Square Meters per Week low-e insulated glass building glass
Packaging & Delivery
Packaging Details
low-e insulated glass building glass: plywood crates with fresh protective paper between glass pieces
Port
Qingdao port

    wholesale window door decorative glass sound proof F-green reflective low-e insulated glass



1.Company Introduction



Shandong Yaohua Glass Co.,LTD is a building glass deep-processing manufacturer, which has specialized in building glass for 30 years. At present, there are about 300 employees, 2 large modern standard factories and more than 40,000 square meters of production base. Its comprehensive power ranks fairly high in the industry with a total capital  asset of RMB100 million and an annual sale of more than RMB 100 million. Shandong Yaohua Glass Co.,LTD has been granted both "Shandong Province Famous Trademark" and "Shandong Province Famous Brand Products".

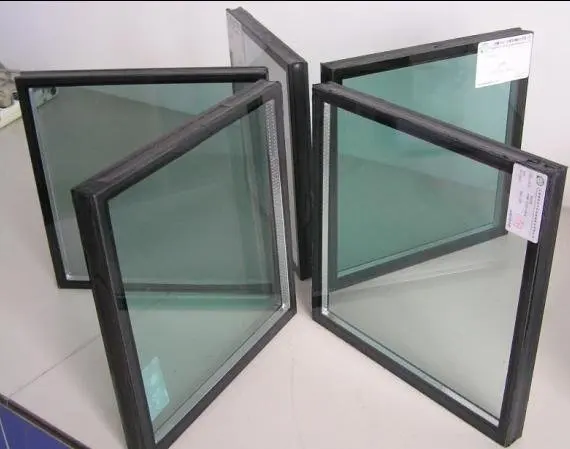

2.Introduction of low-e insulated glass



Low-e glass  is a product which uses one or two pieces of low-e glass. It can reduce heat transfer and increase energy saving effect. It can be seperated into on-line low-e glass and off-line low-e glass.



On-line coated (pyrolitic process):



this is a clear glass which has been coated with a metal oxide through pyrolysis when the glass leaves the tin bath (at 650C).

The coating is therefore very resistant to mechanical damage, and this Low-E glass can be cut, tempered or laminated just as normal uncoated glass.



main on-line low-e glass brands:Pilkington (EA series), AGC(PG, SY series), G-crystal



Off-line coated(magnetron process):



this  is a clear glass which has received, on one of its faces, a silver coating applied by magnetically enhanced cathodic sputtering. This type of Low-E must be used exclusively in insulating glass, with the coating on an internal face.

It can be tempered and laminated.



main off-line low-e glass brands:Xinyi, CSG, TAIWAN glass



low-e insulated glass specifications:

thickness:3-15mm

max size:2440X6000mm

min size:200X300mm



Characteristics of low-e insulated glass

  • The best low-e glass sheet, produced the high point, saving energy, beautiful and comfortable low-e insulated glass
  • Energy saving
  • Low noise
  • Locking dew, frost and UVR light
  • We can produce the double and triple silver low-e  insulated glass


3.Core competence products of Shandong Yaohua



Tempered glassFire ratet glassWaterjet cutting glass
Laminated glassCeramic frit glassDupont SGP laminated glass
Low-e insulated glassHeat soaked glassHeat strengthened glass
Low-e reflective glassSilver mirrorAluminum mirror
Curved tempered glassLow-e tempered glassLow-e laminated glass

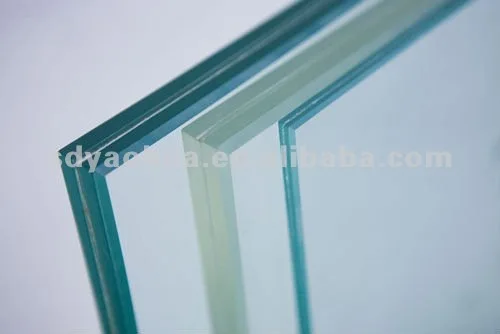

DSC00716.JPGLaminated glass01 -






4. Low-e insulated glass production equipment



   a.Hantaiji Insulated Glass Automatic Production Line

   b.Hanjiang Insulated Glass Automatic Production Line

   c.Automatic Insulated Glass Production Line from Bystronic Switzerland (2 lines)







5. Advantages of Shandong Yaohua Glass



1).30 years experience on glass, 10years exporting, 800 containers exported one year.

2).Comply with EN, AS/NZS, ASTM, GB standard certificate.

3).World advanced equipment.

4).Various glass & fast delivery time.

5).Strict quality control management.

6).Professional packing team for years.

7).Competitive price and quality.

8).Fast delivery time.

9).Sincere after-sale service.



6. Package show



5



7.Contact Information



 Simon-



Welcome to visit our company.
